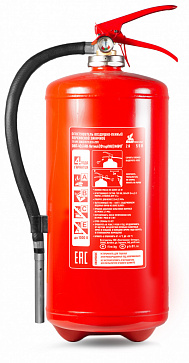

Portable AFFF Foam MIG Fire Extinguisher 4 litres AB (2А, 55В)

Information center

+375 (29) 668-22-77

Working hours: Mo-Fr: 8:15-17:00

CREATING FOR LIFE

Description
Code
Models by GOST15150/ ISO12944
Portable AFFF Foam MIG Fire Extinguisher 4 litres AB (2А, 55В), Summer Edition
113-09
O4/C2
Portable AFFF Foam MIG Fire Extinguisher 4 litres AB (2А, 55В), Winter Edition
113-10
O2/C2
Portable AFFF Foam MIG Fire Extinguisher 4 litres AB (2А, 55В), Summer Edition
113-200
OM4/C4-H (high corrosion resistance)
Portable AFFF Foam MIG Fire Extinguisher 4 litres AB (2А, 55В), Winter Edition
113-215
OM2/C4-H (high corrosion resistance)
Main technical data and characteristics
Rank of standardized fire source (fire extinguishing capability) for class A
2A
Rank of standardized fire source (fire extinguishing capability) for class B
55B
Operating temperature range, °C
summer edition: from +5 to + 50; winter edition: -30 to + 50
Gross weight, kg
6,6
Dimensions(length, cylinder diameter), mm., not more
450x150
Mass of fire extinguishing agent, kg
4-0,2
Cylinder name and manufacturer
BP-4 MIG, JSC Pozhtechnika
Cylinder volume, l
5
Number of welds at the cylinder
2 (seamless)
Cylinder service life, years
15
Fire extinguisher service life, years
15
Branded factory repair work
available (factory warranty for factory repair work is 5 years)
Minimum recharge cycle
every 5 years
Warranty, years
4 (twice as much as the standard)
Recommended transport brackets
KTR-4/5(code 121-102), KTM(code 121-144), KTH-4(code 121-83)

The modern stored pressure foam fire extinguisher OVP-4(s)-AB (Fluorosurfactant) MIG with a fire extinguishing capacity of 2A 55B is intended for the protection of chemical and petrochemical facilities, airfields, sea vessels and ports, etc. It is particularly effective when extinguishing flammable liquids. The design of the fire extinguisher nozzle ensures the supply of low expansion foam. Due to the use of a high-quality fluorine-containing charge, certified in Europe, as well as modern charging technology with nitrogen purified from water vapor, it has a higher rank (fire extinguishing capacity) than that provided for by the current National System of Standards  for fire extinguishers with a hydrocarbon composition. Due to the internal polymer coating of the cylinder, as well as the stable fluorine-containing  charge, the period before recharging is 5 years (hydrocarbon charge - 1 year).

The fire extinguisher cylinder has a declaration of conformity with the requirements of TR CU 032/2013.

Fire extinguishers can be manufactured in a corrosion-resistant design according to C4-H and C5-M ISO 12944 to protect objects with a corrosive environment.
