Description
Code
Models by GOST15150/ ISO12944
Portable Dry Powder MIG E Fire Extinguisher 5 kg ABCE (3А, 144В, С, Е)
111-23
ОМ2/С4-Н
Portable Dry Powder MIG E Fire Extinguisher 5 kg ABCE (3А, 144В, С, Е)
111-222
ОМ2/С5-М
  • EXTINGUISHES UP TO 20,000 V
  • INCREASED FIRE EXTINGUISHING ABILITY
  • CORROSION RESISTANT
  • LIFITIME 15 YEARS
  • RMRS APPROVED
Main technical data and characteristics
Rank of standardized fire source (fire extinguishing capability) for class A
3A (provides extinguishing of 13.89 sq.m of solid combustible materials)
Rank of standardized fire source (fire extinguishing capability) for class B
144B (provides extinguishing of 96L of burning gasoline), 2 times higher than the standard (70B)
Fire extinguishing capability for class C
available (according to the standard, it does not have a measurable rating)
Fire extinguishing capability for class E
provides fire extinguishing for electrical installations under voltage up to 20,000 V.
Operating temperature range, °C
From -50°C to +50°C with normal air humidity (indoor placement)
Gross weight, kg
7,7
Dimensions(length, cylinder diameter), mm., not more
520x150
Mass of fire extinguishing agent, kg
5
Cylinder name and manufacturer
BP-5 MIG, JSC Pozhtechnika
Cylinder volume, l
6,3
Number of welds at the cylinder
4 ( typical design)
Cylinder service life, years
15 (1.5 times more than the standard).
Fire extinguisher service life, years
15 (1.5 times more than the standard).
Branded factory repair work
available (factory warranty for factory repair work is 5 years)
Minimum recharge cycle
every 5 years
Warranty, years
4 (twice the standard amount)
Recommended transport brackets
KTR-4/5(code 121-102), KTM-5(code 121-145), KTH-5(code 121-84)
Professional powder fire extinguisher MIG E with increased extinguishing capacity with a 5kg OP-5(z) ABCE (3A, 144B) MIG charge is designed to protect premises with an increased level of explosion and fire hazard of categories A, B, and C, and is also used for protection of administrative buildings, business premises of categories G and D, on railroad transport, as well as for all types of vehicles, including buses.

It can become a reliable protector of a country house or apartment.

Thanks to the use of high-quality fire extinguishing powder, certified according to European and Eurasian standards, as well as modern technology of nitrogen charging, purified from water vapors, it possesses a larger range (fire extinguishing capacity) than is provided by the current GOST R: for class A - 3A instead of 2A, for class B - 144B instead of 70B.

It is intended for extinguishing electrical equipment up to 20,000V.

A rank of 3A 144B means that it can extinguish 13.89 m^2 of solid combustible materials or 144 liters of combustible liquid.
It extinguishes more than the OP-6 model.

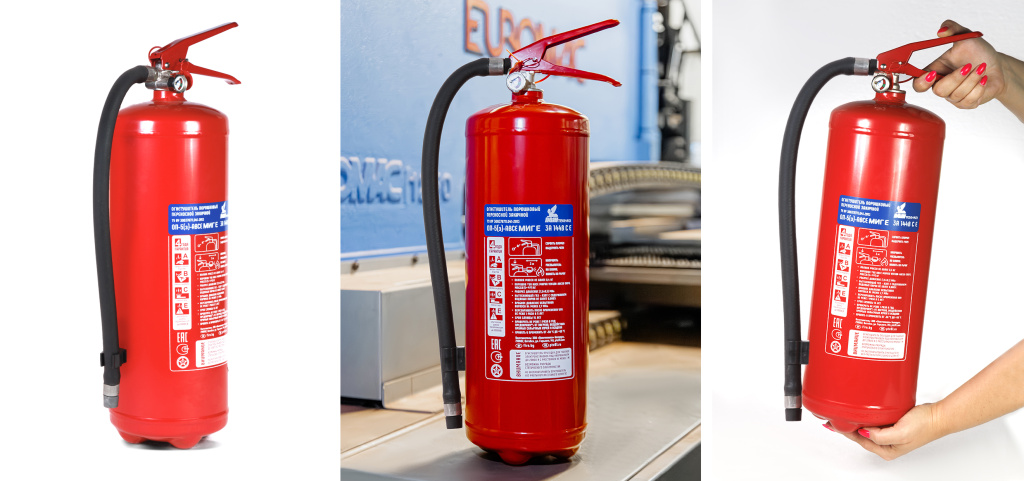

баннер ОП-5 МИГ Е копия.jpg

The design of the fire extinguisher uses a metal shut-off and starting device, certified according to European standards with a safety valve and a diaphragm indicator, making the fire extinguisher reliable and preventing the loss of operability if the indicator glass is broken.

The shut-off and starting device of increased reliability is equipped with a safety valve for the automatic release of excess pressure, for example, in case of overheating of the body. The nipple in the socket of the indicator ensures the possibility of checking and even replacing the indicator without losing the operability of the fire extinguisher.

The OP-5(z)-ABCE MIG E (3A 144B C E up to 20,000V) fire extinguisher is made in a corrosion-resistant design according to ISO 12944 C4-H (high protection level), in general industrial and marine versions, operating temperature from -50 to +50°C with relative humidity of 98%.
