Description
Code
Models

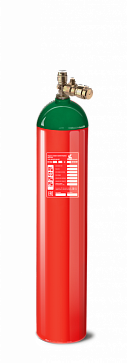

MGPI 300-80-12 INEI
235-05
without start device
MGPI 300-80-12-PN INEI
235-02
with pneumatic start device
MGPI 300-80-12-EM INEI
235-03
with electromagnetic start device
MGPI 300-80-12-EM/M INEI
235-04
with electwithout and manual start device
- 4 years warranty
- Recharge after 10 years
- TR CU 043/2017certified
- Life time 35 years
- Safe
Main technical data and characteristics
Cylinder capacity, lt
100±5
Operational pressure of the unit at a temperature of 20°С MPa (kgf/cm²)
30 (300)
Test pressure of the module, MPa (kgf/cm²)
45 (450)
Response pressure of the membrane safety device, MPa (kgf/cm²)
min.
40,5 (405)
max.
45,0 (450)
Valve/dip tube nominal pass dia., mm
12/12
Pneumatic start pressure, MPa
min.
2,1 (21)
max.
30 (300)
Number of module actuations during the service life, times, no less
20
Number of module actuations during the service life, times, no less
5
Module sizes without valve, mm, not more
dia.
316
height
1700±10
height with protective cap
1840
Height to the center of outlet, mm
1577±10
Orifice connecting thread
W21.8x1/14 DIN477
Module weight without charge, kg
135±8
Discharge time of 95% of agent, s, not more
60
The residue of GFEA in cylinder, kg, not more
0,4
DC voltage of the electromagnetic drive, V
24
Actuation current of the electromagnetic drive, A
0,5
Duration of the starting impulse of the electromagnetic drive, s
1,5-2,0
Inspection of cylinder
every 10 years
